Product Introduction
Differential transformer displacement sensors (LVTD) can be widely used in aerospace, machinery, construction, textiles,?
railways, coal, metallurgy, plastics, chemicals, scientific research institutions and other industries in the national economy?
to measure elongation, vibration, High-precision position sensor such as object thickness and expansion

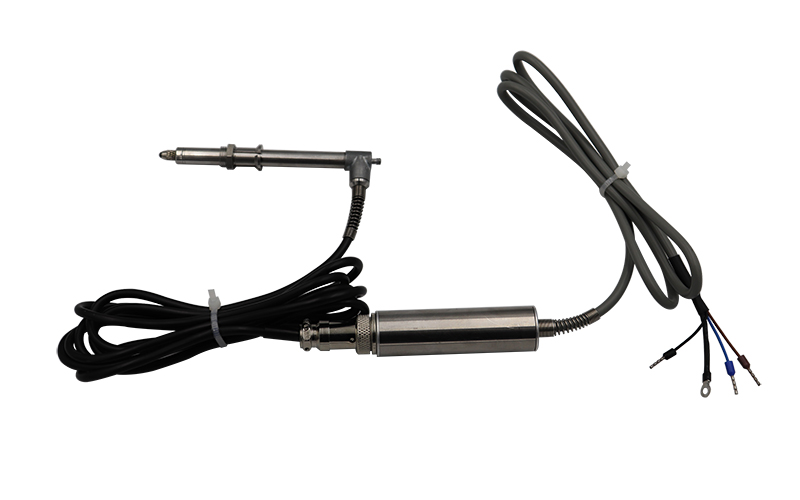

The DC LVDT sensor has excellent performance, 9-28V DC power supply, and the electronic circuit is sealed in a 304 stainless?
steel metal tube. It can work in harsh environments such as humidity and dust. The output signal is a standard 0-5V that can be
?used by a computer or PLC. 4-20MA output, or RS485 digital signal
Performance parameter
Power supply: 12-24V
Working voltage: 0.03-0.06MPa
Working current: voltage output type supply current: ≤12MA
? ? ? ? ? ? Two-wire current output type, power supply current 4-20MA
Displacement range: FR25: 0-5mm
Output signal: 0-5V, 0-10V, 40-20Ma, RS485 digital signal
Linearity error: analog signal output ±0.25%FS
Digital signal output: ±0.1%FS
Weight error≤1um
Resolution ≤0.1um
Dynamic characteristics: 3HZ
Thrust: 0.25N±0.05 (under the condition of 0.03MPa)
Service temperature:-25 ℃ to + 85 ℃
Impact resistance: 250g/11ms
Vibration allowed: 10g/2KHZ
Temperature coefficient: zero point≤0.01%/ ℃
Sensitivity ≤0.025%/ ℃
Application:glass production line inspection, metal processing inspection, auto parts inspection,?
cylinder displacement detection and control, building material thickness measurement and control,?
self-unloading heavy truck applications and other occasions.
